Highly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam Gearing

Packaging Details : The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Price : $25,000/sets >=1 sets

product type : net

production capacity : 90%

place of origin : Jiangsu, China

brand name : chenye

power(w) : 3000 W

knitting style : Warp

Knitting Method : Single Phase

Computerized : Yes

dimension(l*w*h) : different

Warranty : 2 years

Key Selling Points : Automatic

gauge : 3-5-7 multi-gauge

knitting width : 260inch

machinery test report : Provided

video outgoing-inspection : Provided

core components : motor, Other

Application : knotless fishing net,chemical fiber garment net and mosquito net

Features : open cam gearing, the electronic beam control

Gauge : E6/E9/E12/E14/E16/E18/E20/E22

Working width : 80-260"

Speed : 200-530rpm

Number of bars : 2-6

Guage : diffeent

Color : blue

Model : Control system

Needles : latch needle

Applicable Industries : Food & Beverage Factory, Farms, Restaurant, Home Use, Printing Shops, Food & Beverage Shops

Condition : New

Warranty of core components : 2 years

Marketing Type : New Product 2021

Type : raschel

Weight : 12000 KG

Contact Now

Product Description

Application:

It's suitable for manufacturing mosquito net, chemical fiber garment net, technical net, knotless fishing net, quadrangle net and medical net.

Suitable Material :

HDPE ,polypropylene ,polyester

HDPE green shade net suppliers making machine for greenhouse

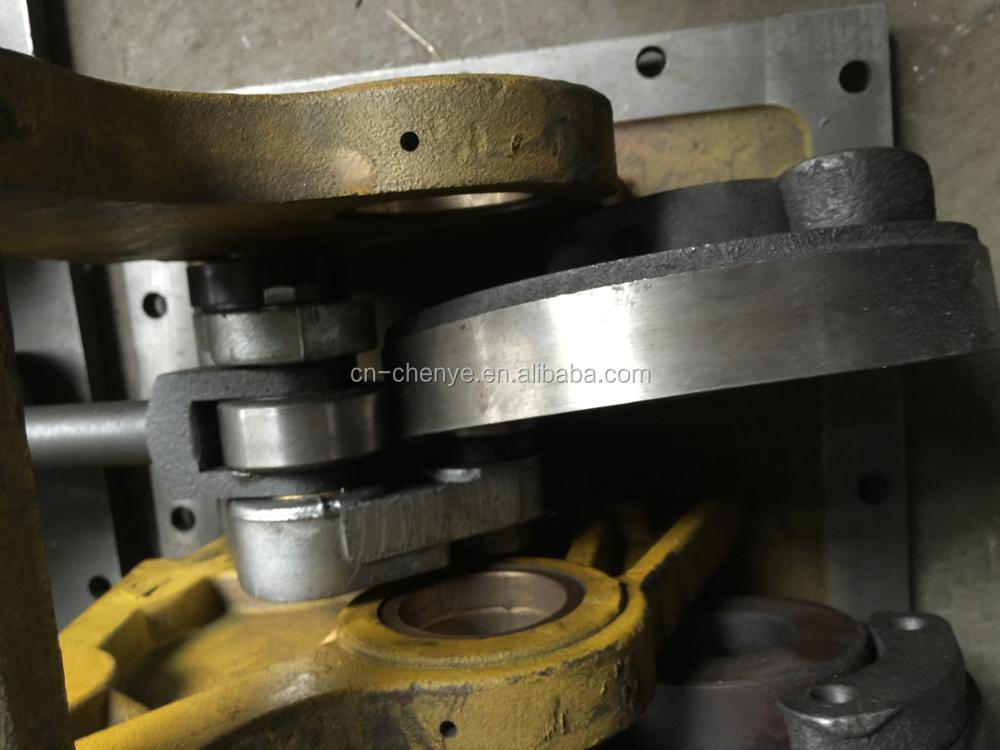

FEATURES: the machine is equipped with open cam gearing, the electronic beam control, the electronic take-up control.

Machine Specification :

1.Model :single needle bar warp knitting machine

2. Needle type:Latch needle

3. Gauge:E6/E9/E12/E14/E14/E16/E18/E20/E22 (needles/inch)

4. Working width: 80-260"

5. Number of guide bars: 2-6bars

6.Automatic: full-automatic

7. Take-up manner: 2 rollers with friction drive, center shaft drive, 2rollers with friction drive, separately-standing, center shaft drive, separately-standing

8. Max. speed of main shaft: working speed 200-530rpm

9. Drive motor: main drive motor is 3-5.5kw, slow speed motor is 0.37-0.75kw

10.Production Capacity: about 500kg-1000kg/24hrs

11.Weight :about 4500-7500KGS/set

12.Packing:The machine is packed by port container, spare parts and control box are packed in cartons

Machine Advantage :

1.Simple structure, Operate Conveniently.

2.With automatic stop system

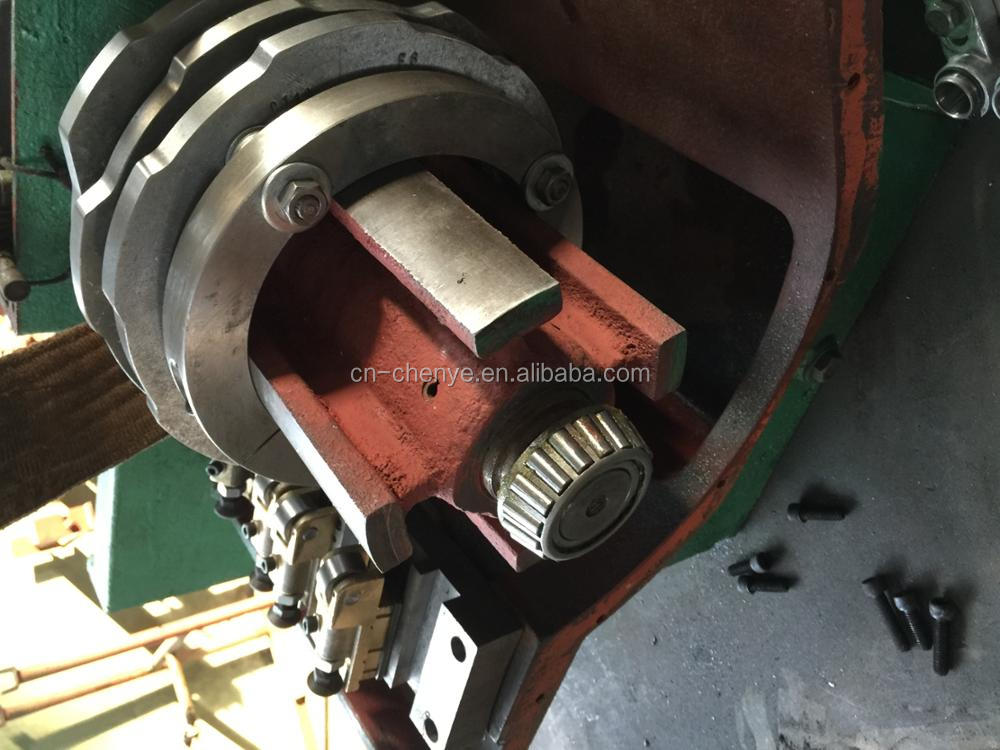

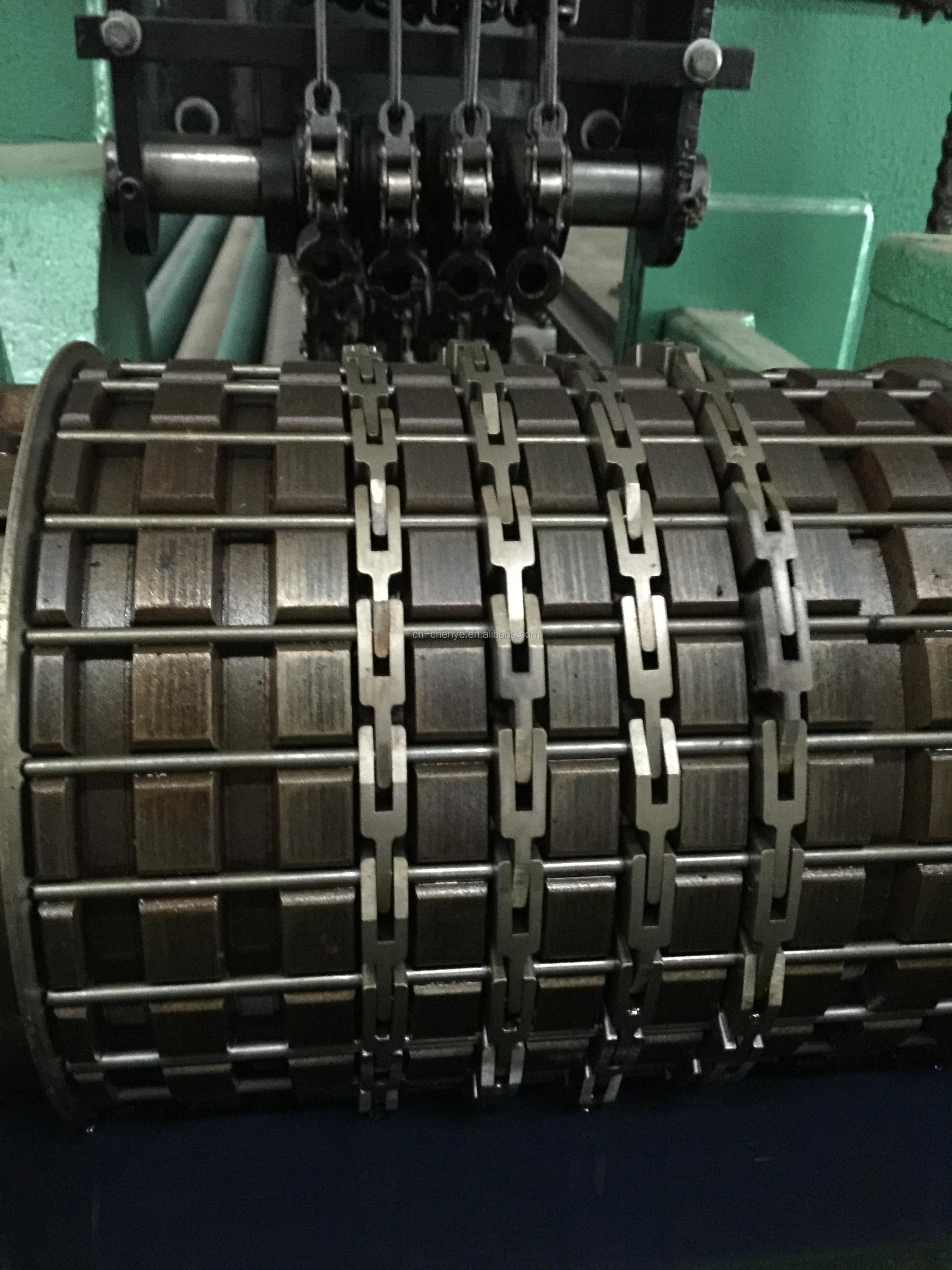

3.Cam drive ,stable performance

4.The main motor adopts conversion control , stepless Speed Regulating

5. Standard Fittings .


Main type
Machine size
Weight(kg)
Main motor power
Inching motor power
Speed(rpm)
SRCE-135
4300*2200*2700
4500
3kw
0.37kw
200-530
SRCE-150
4900*2200*2700
5000
3kw
0.37kw
200-530
SRCE-180
6100*2300*2800
7500
5.5kw
0.75kw
200-530

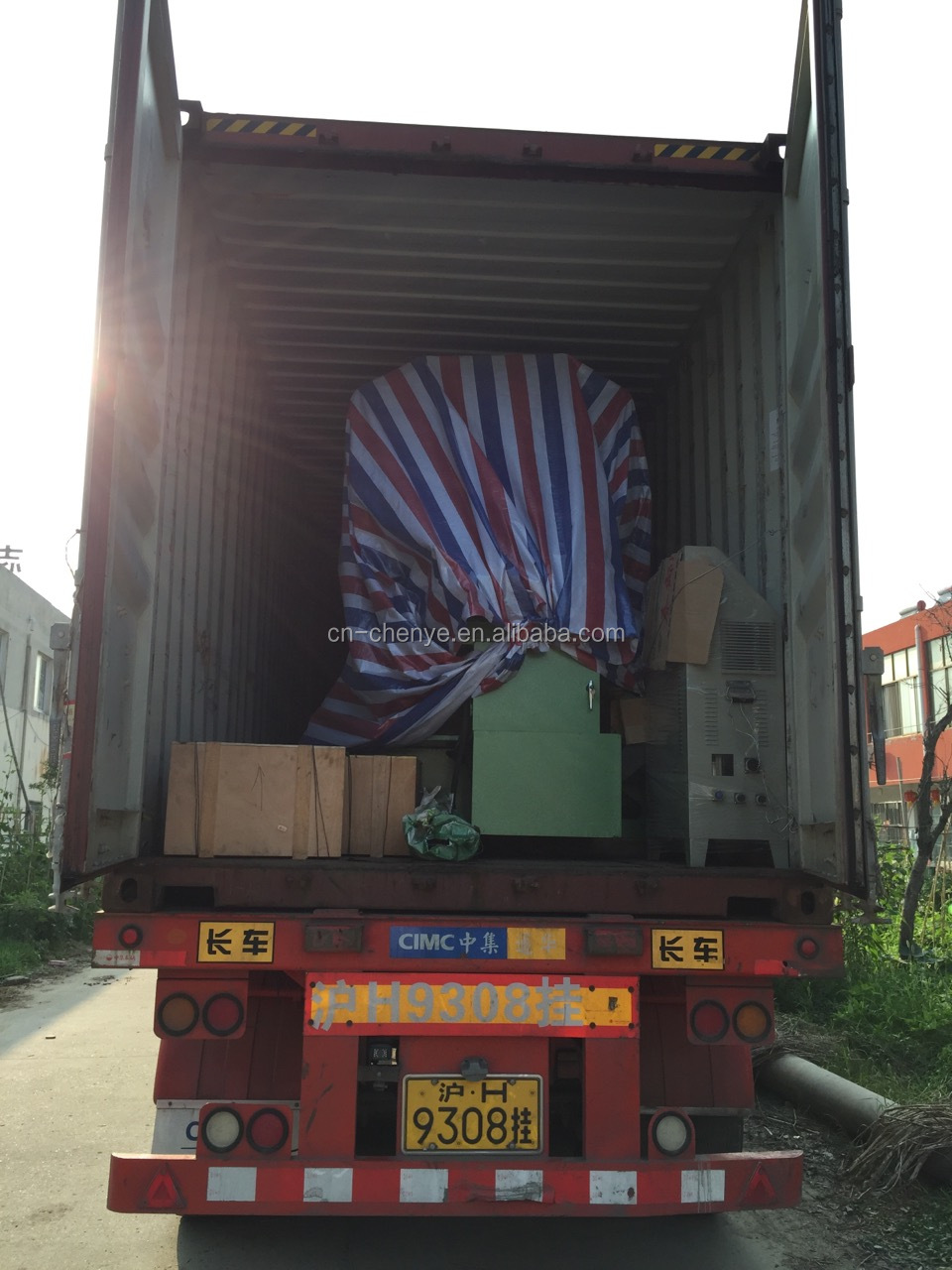

Packaging & Shipping


Highly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam GearingHighly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam Gearing

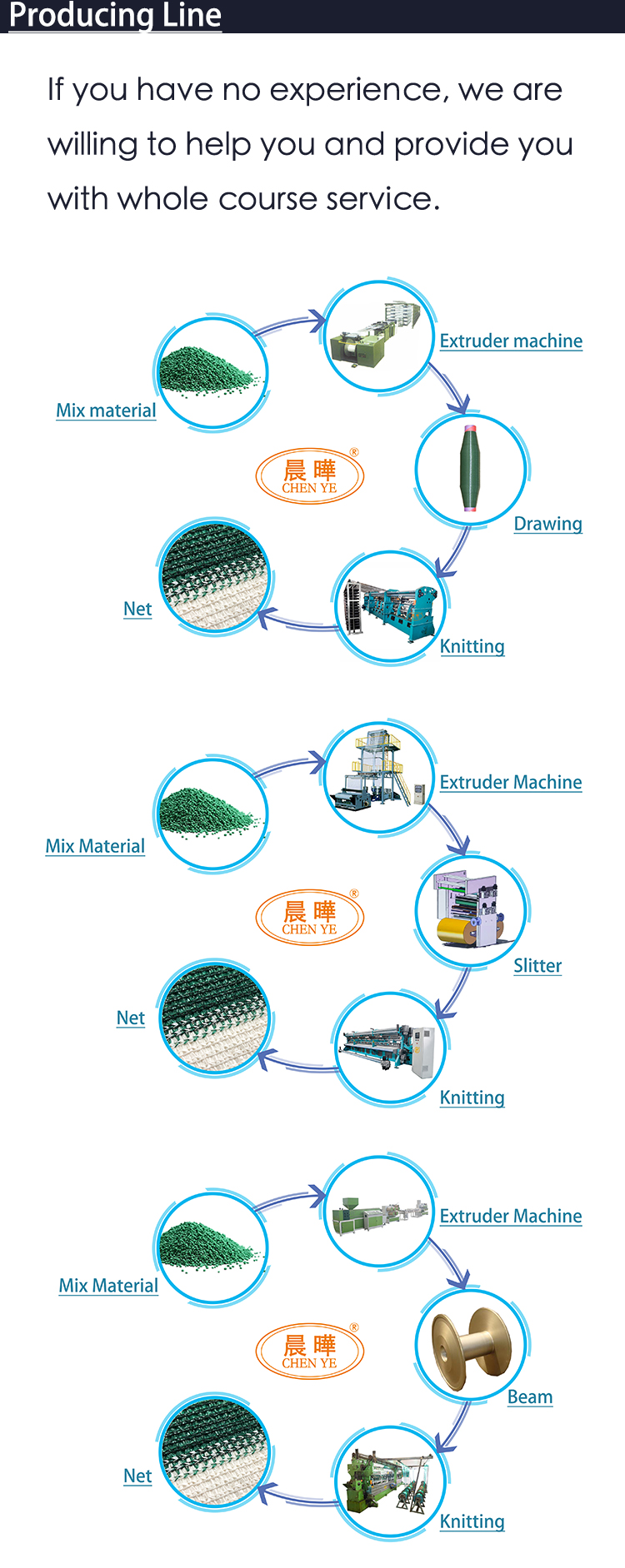

PRODUCTION PROCESS

Highly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam Gearing

Our Services

Reply customer inquiry in 24 working hours.
Experienced answer all your question in profession and fluent English.
Customized design is available OEM&ODM are welcome.
We are manufacture, we can provide best quality with best price to you .
Prominent and unique solution can be provided to our customer by our well-trained and professional engineers and staffs .

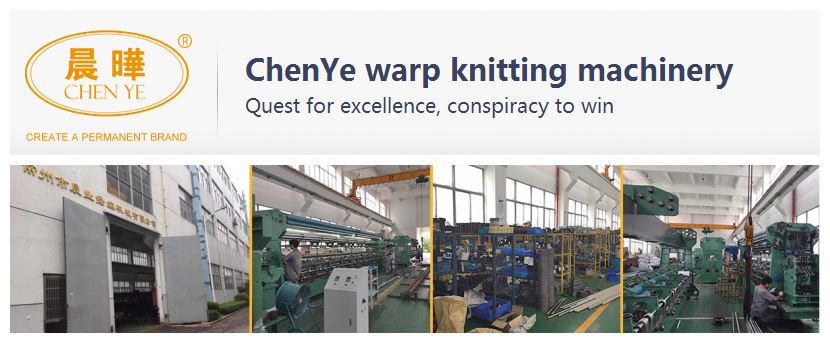

Company Information


We are a manufacturer specialised in warp knitting machinery with strong R&D background . We have our own sales and service team to expand our overseas trade . Our focus is also on technical and product development

Our facility covers 14000 sq.m with more than 60 employees . We have our own engineers with strong knowledge of knitting machinery . We are able to introduce advanced technology into warp knitting industries by having technical co-operation with Jiangnan University . We are member of Chinese Fishing Boat & Gear Association who is truly in technology research and development on manufacturers to ensure product quality , understanding customer requireements and able to provide solutions on their problems . The business philosophy is to optimize product performance and quality aiming at developing manufacturers who are able to build new type of warp knitting machine .

Our company has developed a Raschel machine with excellent performance , economical and practical characteristics . Our products have been sold to India , Vietnam , Indonesia , Bangladesh , Egypt and etc. achieving high customer satisfaction . We want to continue innovating and develop new products to satisfy different user needs . We want to enlarge our market share with advanced technology , reliable quality and good customer service .

Highly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam GearingHighly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam GearingHighly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam GearingHighly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam GearingHighly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam GearingHighly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam Gearing

FAQ

1,Q:Are you a manufacturer or trade company?
A: We are a professional manufacturer holding our own international trade. For that we can better understand customer's needs and offer a reasonable price.

2,Q : Are you available for visiting the factory?
A : for long term business , we are really welcome all our friends to come here and visit our factory in order to On-the-spot investigation of our production capacity.

3,Q : Is the price changeable?
A : We offer reasonable price for every clients, and the price is changeable according to the purchase amounting.

4,Q : How about the quality?
A : Professional assembly line work and strict quality test system can ensure your high quality requirement.

5,Q : How about the after-sale service?
A : We offer after-sale overseas service. Engineers available to service machinery overseas.
